Storage

The ra_storage module adds Boxer, Unboxer, and Item Crate workflows for compact inventory transport.

  • Namespace: ra_storage
  • Give all: /function ra_storage:items/give_all
  • Give crate only: /function ra_storage:items/give_storage_box
  • Runtime architecture: How It Works

Block Summary

Block Item model Recipe Default I/O

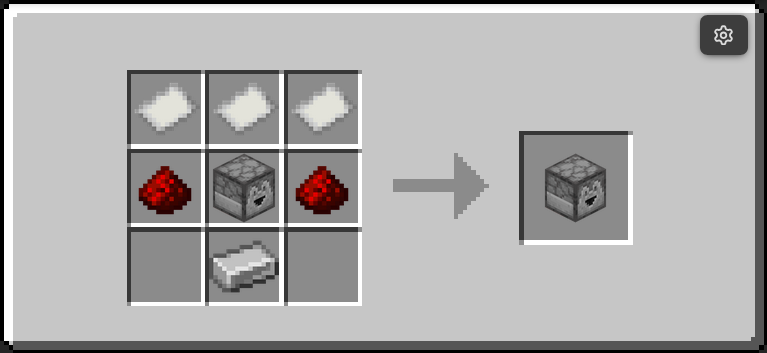

Boxer minecraft:dropper Boxer recipe input1="^ ^ ^-1", output1="^ ^ ^1"

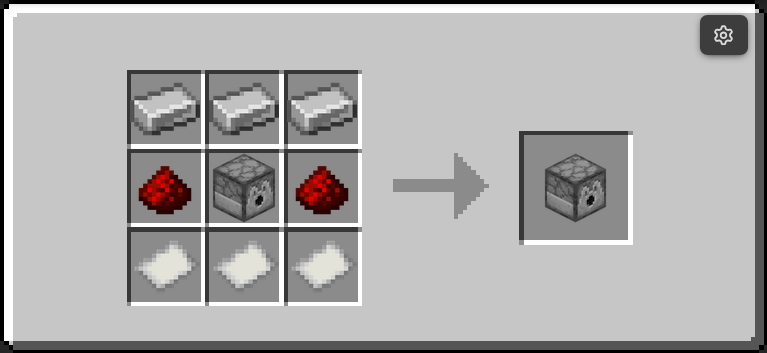

Unboxer minecraft:dispenser Unboxer recipe input1="^ ^ ^-1", output1="^ ^ ^1"

Item Crates

Item Crates are storage items and can also be given directly. There is no recipe for one — they are made by a Boxer and emptied by an Unboxer.

  • Base item: minecraft:command_block, rendered as a head via item_model="minecraft:player_head" with profile BoxMan01234
  • The base is a command block so the crate cannot be placed. A crate carries its contents in custom_data, and placing it as a block would drop that silently, destroying everything inside. Command blocks use GameMasterBlockItem, whose placement check requires creative mode and permission level 2, so a survival player cannot place one at all.
  • Stack size: 64
  • Storage payload keys:
  • components.minecraft:custom_data.ra.storage_box.items
  • components.minecraft:custom_data.ra.storage_box.preview
  • Marker key for modern crates: components.minecraft:custom_data.ra.item_box
  • Lore displays the first five preview lines; if more exist, lore appends ... and more

Two-Minute Setup

  1. Place a Boxer and point its front toward an output container.
  2. Put the source container behind the Boxer (default input1) and ensure output has free space.
  3. Power the Boxer. It packs the full input container into one Item Crate and inserts that crate into output1.
  4. Place an Unboxer facing an output container.
  5. Put one or more Item Crates inside the Unboxer itself (it is a barrel — open it and drop them in).
  6. Power the Unboxer. It empties each crate completely into output1 and consumes the crate.

Runtime Behavior

Boxer

  1. Runs while powered.
  2. Requires both input1 and output1 to be valid #ra_lib:containers.
  3. Copies the full Items list from input1 into one Item Crate (ra.storage_box.items).
  4. Builds a preview list and refreshes crate lore.
  5. Inserts the generated crate into output1 using shared item-mover capacity checks.
  6. Clears input container contents only after successful insertion.
  7. Enforces a hopper-like minimum 4 tick cooldown between successful operations.

Unboxer

  1. Runs while powered.
  2. Selects one candidate crate from input1, which defaults to the Unboxer's own inventory.
  3. Accepts both modern crates (ra.item_box) and legacy crates (ra.storage_box_item).
  4. Empties the crate completely in one activation, taking each stored stack out before delivering it.
  5. If output1 cannot hold a stack, the remainder is dropped as an item rather than destroyed.
  6. Destroys the spent crate, which also clears the way for the next one in the container.
  7. Enforces a hopper-like minimum 4 tick cooldown between successful operations.

Command Quick Reference

Command Purpose
/function ra_storage:items/give_all Give Boxer, Unboxer, and Item Crate
/function ra_storage:items/give_storage_box Give one empty Item Crate
/function ra:items/bundles/give_storage_bundle Give a prefilled storage bundle

Troubleshooting

  • Boxer or Unboxer does nothing: verify it is powered and that input1/output1 point to valid containers.
  • Boxer does not clear input: output likely cannot accept another item (full container).
  • Unboxer does nothing: ensure the selected input item is an Item Crate with at least one stored stack.
  • Items on the floor near the Unboxer: the output was full. Contents are dropped rather than deleted.

Changed in v5.1.4

The Unboxer is now a barrel, not a dispenser. It holds the crates it is unboxing in its own inventory, and a vanilla dispenser fires its own contents on any rising redstone edge — which is what threw crates on the floor part-way through. A barrel has the same inventory and GUI and cannot dispense. Redstone control is unchanged: power it to run.

Contributor Notes

  1. Keep modern (ra.item_box) and legacy (ra.storage_box_item) crate compatibility paths intact.
  2. Take from the crate before inserting, and deliver with ra_lib:inventory/insert_or_drop. Inserting first and consuming afterwards duplicates items; a plain loot insert destroys the overflow.
  3. If lore or preview format changes, update both update_lore and update_lore_storage_target.
