Logic Gates

The ra_gates namespace provides compact logic and timing blocks for vanilla redstone builds.

  • Namespace: ra_gates
  • Give all: /function ra_gates:items/give_all
  • Runtime architecture: How It Works

Block Summary

Block Recipe Main property

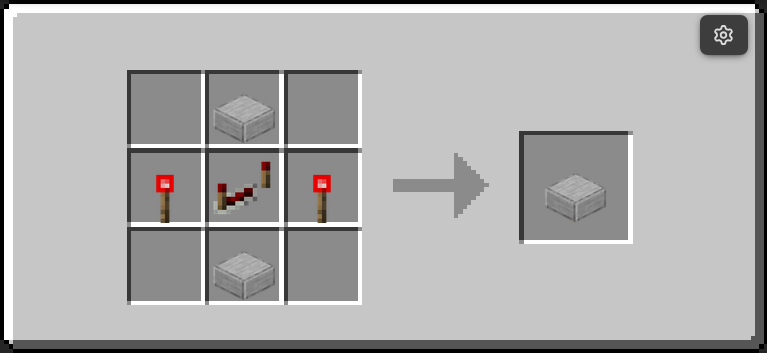

UNI Gate UNI Gate recipe gate_type
Clock Clock recipe cooldown

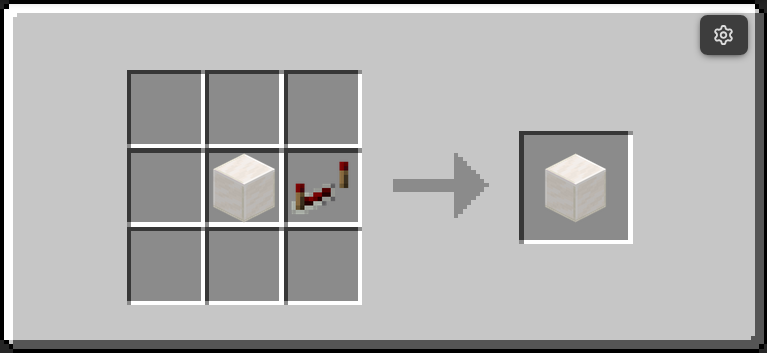

Delayer Delayer recipe delay

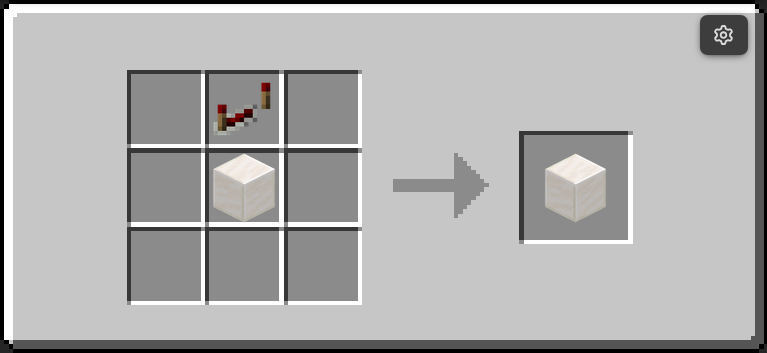

Extender Extender recipe extend

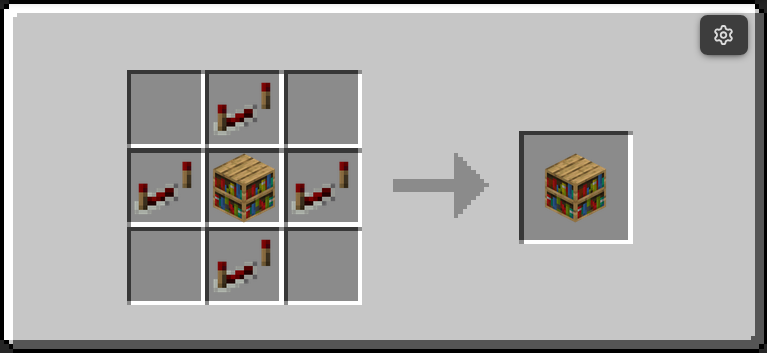

Randomizer Randomizer recipe chance

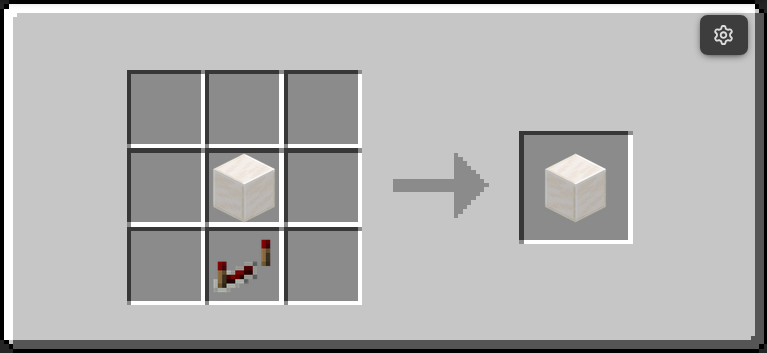

Shortener Shortener recipe pulse

Shared Signal Model

Gate processing runs ra_lib:redstone/detect directly inside each block process function.

  • Inputs are read from ra.power.north/south/east/west/up/down (0..16).
  • Active input count is computed as the number of directions with power >= 1.
  • and/nand compare the powered-side count against a full census of sides that carry a redstone source at all (ra_lib:redstone/count_inputs), so an unpowered repeater, comparator, torch or button counts as an input that is off. Before v5.1.4 only dust and levers were considered, so an AND gate could output true with a dead repeater on one side.
  • Any power in 1..16 counts as active for gate truth evaluation.

Each gate then resolves output behavior from those derived input states and local properties.

Per-Block Behavior

UNI Gate

  • Seven modes: and, or, not, xor, nand, nor, xnor
  • Mode value in data.properties.gate_type
  • Wrench cycles through available modes
  • The output shell is rewritten only when the result changes, with a resync every 40 ticks that also repairs a shell edited by hand

Clock

  • Periodic pulse generator
  • Property: data.properties.cooldown
  • Includes migration compatibility for older delay key usage

Delayer

  • Delays rising signal by configurable ticks
  • Property: data.properties.delay
  • Default value: 20 ticks

Extender

  • Extends output after input turns off
  • Property: data.properties.extend
  • Default value: 20 ticks

Randomizer

  • Random chance output on rising edge
  • Property: data.properties.chance
  • Effective range: 0 to 100

Shortener

  • Converts input into fixed-width pulse
  • Property: data.properties.pulse
  • Default value: 2 ticks

Debug and Tuning

  1. Use CDH to tune gate properties live.
  2. Use goggles to inspect runtime state while the circuit is active.
  3. If behavior appears inconsistent, check for orphan markers near replaced gates.
